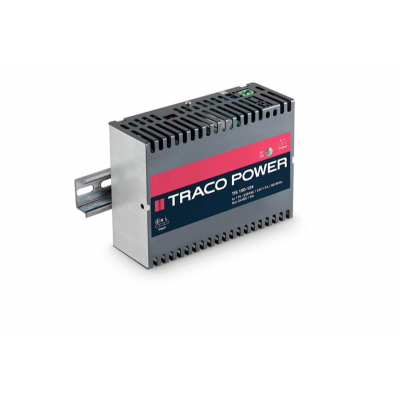

TRACO POWERTIS 150-124 電源

點擊圖片查看原圖

所在地：	上海
有效期至：	長期有效
最后更新：	2025-02-06 16:03
瀏覽次數：	357

店鋪基本資料信息

TRACO電源專營
[VIP第3年] 指數:3
通過認證 [誠信檔案]
聯系人盧卿(先生) 經理
會員 [當前離線]
電話183 2152 7578
地區上海
地址上海市寶山區富聯一路98弄6號

產品詳細說明

The switching power supplies of the TIS series have been particularly designed for applications in industrial process control systems and with machine tools. Excellent specifications and high immunity against electrical disturbances guarantee reliable power for sensitive loads in rugged industrial environments. With the help of optional function modules specific requirements for system applications can be easily realized with a standard model. With the UDS module the power supplies can be extended to a perfect DC-UPS with automatic battery- backup. This function is very often required in applications where a time delayed shutdown of a system is necessary. To monitor and control the power supply a signal module can be installed. For parallel operation with active power sharing a redundancy option is available. This flexibility makes the TIS series power supplies a cost effective solution for many industrial applications.
TIS系列開關電源是專門為工業過程控制系統和機床應用而設計的。優良的規格和對電氣干擾的高抗擾性保證了在惡劣的工業環境中為敏感負載提供可靠的電力。在可選功能模塊的幫助下，系統應用程序的特定需求可以通過標準模型很容易地實現。使用UDS模塊，可擴展為***的DC-UPS，并具有自動電池備份功能。在需要延遲系統關閉的應用程序中，經常需要此功能。為了監視和控制電源，可以安裝信號模塊。對于有功功率共享的并行操作，可用冗余選項。這種靈活性使TIS系列電源成為許多工業應用的經濟有效的解決方案

Specifications

Output Voltage

24 VDC

Output Adjustment 1

24-28 VDC

Output Current

6000 mA

Power Rating

150 W

Number of Outputs

single

Input Voltage
